200Nm - 600Nm Intelligent Electric Actuator Thread Connection Ball Valve Electric Actuator

  • 1
  • 2
  • 3

Brand Name : GRAT

Model Number : EA Series

Certification : IP67,CCC, ISO, CE

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : USD $100.00/ Piece

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Month

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Certifications : IP68/CCC/ISO/CE

Power Supply : AC220V

Power Source : Electric Power

Temperature : Ordinary Temperature

Connection : Thread

Material : Alloy

Torque : 200~600nm

Type : on/off, Regulating

Contact Now

EA Series Thread Connection 200Nm~600Nm Intelligent Electric Actuator For Ball Valve



Product Description:



200Nm~600Nm Intelligent Electric Actuator For Ball Valve / IP67/Ordinary Temperature



Description:

200Nm - 600Nm Intelligent Electric Actuator Thread Connection Ball Valve Electric Actuator



Specification:


Type Torque Action Time(S) Gyration Angle Motor Power(W) Rated Current(A) Weight(Kg)
200 200NM 6/15
30/60		 0-90° AC220V DC24V AC380V AC220V DC24V AC380V 8.0
40 35 30 0.35 3.57 0.15
400 400NM 6/15
30/60		 0-90° 90 70 40 0.54 5.13 0.29 8.5
600 600NM 45 0-90° 90 70 40 0.64 3.04 0.29 9.0
Power AC 220V±10% 50HZ/60HZ, AC 380V±10% 50HZ/60HZ, DC24V
Insulation resistance 100MΩ/500VDC
Anti-pressure level 1500VAC 1Min
Protection level IP67(It is no leakage in water about 20 meters deep)
Limited component Power-driven: Fully open and close, limit switch.
Manual: Mechanical stopper
Protector Overheat protector(self-recovery)
Installation position Any direction from 0 to 360 degree
Electrical connection M20*1.5 Waterproof cable connection, power wire, signal wire
Ambient Temp -30ºC--60ºC

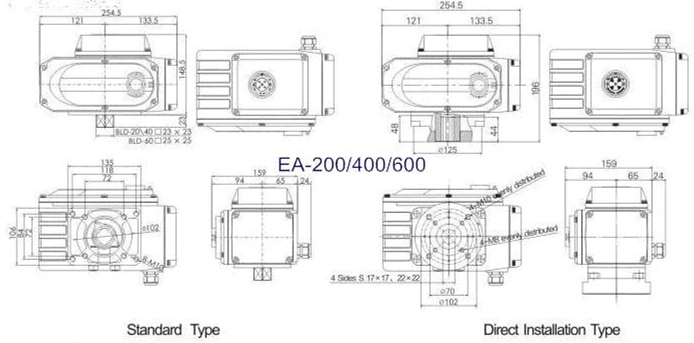

Installation Diagram


200Nm - 600Nm Intelligent Electric Actuator Thread Connection Ball Valve Electric Actuator
Control Diagram
200Nm - 600Nm Intelligent Electric Actuator Thread Connection Ball Valve Electric Actuator

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal
PIU ON/OFF,output 0~1000Ω signal G ON/OFF,output passive contact signal
SP ON/OFF,middle position control H ON/OFF,output passive contact signal



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
